Urban Rail
Column:
Urban End Post - White/Black
Urban Rail
End Post for 42” High urban Rail with one set of welded top & bottom brackets to connect rail to post.
Post is 2-1/4” square complete with post cap and screwed on 1/4” thick 4” x 4” base plate.
...
$70.02

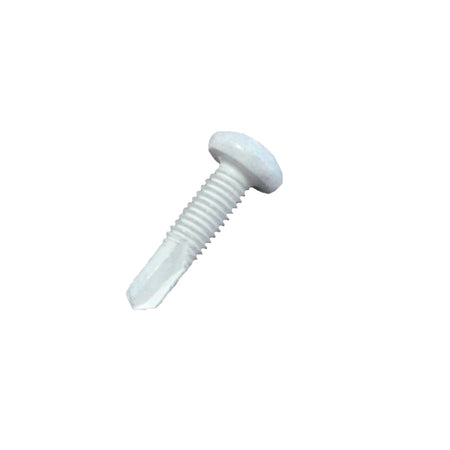

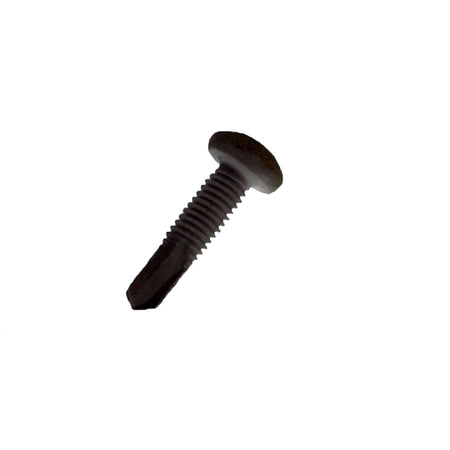

Urban Self-Drilling Screws - White/Black
Urban Rail
Package of 50 collated 10 x 3/4” self-drilling screws used to fasten together the various components of the Urban Rail system.
Uses #2 square drive.
High-grade, zinc plated carbon steel, coated with a rust inhibitor to prolong the life of the fastener.
...
$31.50
Urban Post Base Plate Cover - White/Black
Urban Rail
Two piece nylon/plastic fiber base plate cover for all standard 2.25” square Urban Rail posts.
Wraps post at base to hide fasteners and provide a more finished appearance.
Designed for quick and easy installation.
...
$10.61
Urban Wall Bracket Set - White/Black
Urban Rail
Top and bottom brackets for attaching Urban Rail top and bottom rails to an existing structure.
Aluminum alloy castings.
Requires 6 fasteners (sold separately)
...
$23.45
Urban Straight Stair Pickets - White/Black
Urban Rail
Patented lock-in pickets designed for 35° stairs.
Package of 12 angled 5/8” square pickets for a 6’ section of Urban stair railing.
Package includes 26 aluminum 5” spacers that snap on the top and bottom rails between the stair railing pickets.
...
$111.81
Urban Straight pickets for 6ft - White/Black
Urban Rail
Patented lock-in pickets. Package of 15 standard 5/8” square pickets for a 6ft section of 42” high Urban Rail.
Package includes 32 aluminum 4” spacers that snap on the top and bottom rails between the railing pickets.
...
$111.81
Urban Stair Post - White/Black
Urban Rail
Stair Post for 42” High Urban Rail is used in stair rail and to accommodate custom angle deck applications.
Post is 2-1/4” square complete with post cap and screwed on 1/4” thick 4” x 4” base plate.
...
$70.02
Urban Stair Angle Bracket set - White/Black
Urban Rail
Stair angle brackets are used to fasten Urban Rail top and bottom rails to posts or structure for stair angles.
Requires 8 fasteners (URCS50) to attach to post. Fasteners sold separately. Aluminum alloy castings.
...
$46.03
6" structural lag screws that are used for mounting the Urban Rail posts.
Uses 3/8” hex head driver.
High-grade, zinc plated and double coated for maximum protection against rust and ACQ corrosion.
Quantity: 4
...
$13.66
6" structural lag screws that are used for mounting the Urban Rail posts.
Uses 3/8” hex head driver.
High-grade, zinc plated and double coated for maximum protection against rust and ACQ corrosion.
Quantity: 24
...
$75.43
Urban Line Post - White/Black
Urban Rail
Line Post for 42” High Urban Rail with 2 sets of welded top & bottom brackets, in line for installing multiple sections of rail on a straight run.
Post is 2-1/4” square complete with post cap and screwed on 1/4” thick 4” x 4” base plate.
...
$70.02
Urban Corner Post - White/Black
Urban Rail
Corner Post for 42” High Urban Rail with 2 sets of welded top & bottom brackets at 90° to connect rails to posts.
Post is 2-1/4” square complete with post cap and screwed on 1/4” thick 4” x 4” base plate.
...
$70.02
Urban Bottom Leg Support - White/Black
Urban Rail
Required for horizontal and stair rail lengths over 4ft.
Fasteners sold separately.
Made of Aluminum alloy.
...
$7.36
Urban Bottom Leg Support - White/Black
Urban Rail
Required for horizontal and stair rail lengths over 4ft.
Fasteners sold separately.
Made of Aluminum alloy.
...
$7.36

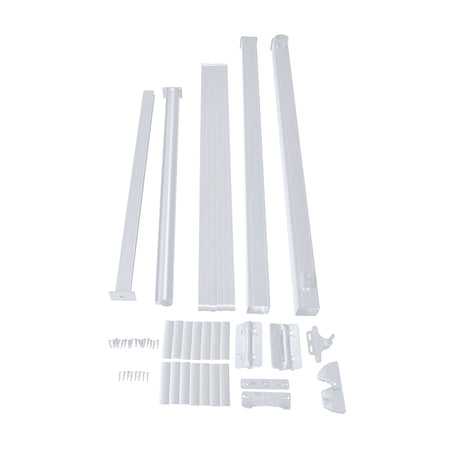

Urban 42" High Gate Package (36" width) - White/Black
Gate Urban Rail
Urban Rail gate package for standard picket 42” high railing.
Gate fits openings of up to 36” and can be cut to fit smaller openings.
Gate includes rails, hinge post, latch post, 6 pickets 5/8” square with spacers, hinges and latch.
Constructed of high strength aluminum with a premium powder coated finish provides maximum durability and low maintenance.
Designed for quick and easy installation.
...
$385.81
Urban 6ft Top & Bottom Rail - White/Black
Urban Rail
Top and bottom rails for 6ft(oc) section of Urban Rail.
For use with straight and stair Urban Rail pickets.
Use with URGG Glass Gasket for glass installation.
Actual length is 69”.
Note: Support Leg (URLS) must be installed under bottom rail, for railing lengths over lengths 4ft. (Sold Separately)
...
$119.17
Urban Angle Bracket set - White/Black
Urban Rail
Angle brackets are used to fasten Urban Rail top and bottom rails to posts or structure for horizontal angles on decks.
Requires 8 fasteners (URCS50) to attach to post.
Fasteners sold separately.
Aluminum alloy castings.
...
$46.03
Pre-Assembled 8ft (oc) aluminum panel with 5/8” pickets.
Finished installed height: 42".
These panels are for horizontal decks only and will not work on stairs. (Use URTB6 and URSSP6 for stair railing).
Actual length: 93”.
Gap Covers included with each panel.
URLS Support Leg required for railing lengths over 4ft. (Sold separately)
...
$311.89
